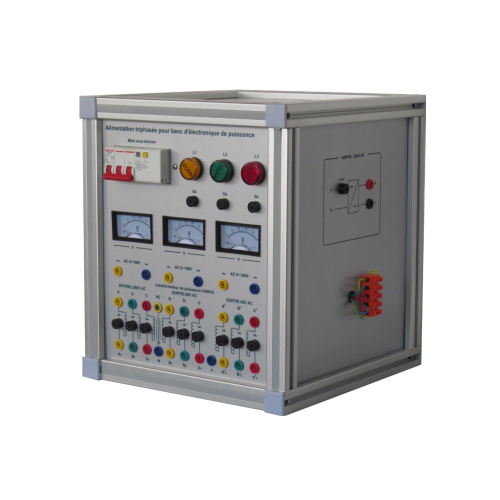

ZE3185T Three Phases Power Supply for Power Electronic Bench Teaching Equipment Electronics Lab Equipment
1. Product Overview
1.1 Overview
The training device includes 1KVA transformer, voltmeter, indicator light and other components. Through relevant experiments, you can be familiar with the operating characteristics of the transformer, master its control principle and control method, and cultivate students' corresponding knowledge and skills. It is suitable for higher vocational colleges and higher vocational colleges, secondary vocational schools and technical and vocational schools related to the teaching and skills training assessment.
1.2 Features
(1) This equipment adopts aluminum profile column frame structure, integrated installation of transformer, measuring instrument and training power supply, easy to use and not easy to damage.
(2) The transformers are fully equipped and can be used in combination to complete the training content of various courses.
(3) The training platform has a good security protection system.
2 performance parameters
(1) Input power: three-phase five-wire system 380V±10% 50Hz
(2) Dimensions: 330mm × 330mm × 380mm
(3) Machine capacity: <1.5KVA
(4) Weight: <100kg
(5) Working conditions: ambient temperature -10 ° C ~ +40 ° C Relative humidity <85% (25 ° C)
3 can complete the training content
(1) Principles of three-phase transformers
(2) Star connection and operation of three-phase transformer
(3) Triangular connection and operation of three-phase transformer
(4) "Z" connection and operation of three-phase transformer
