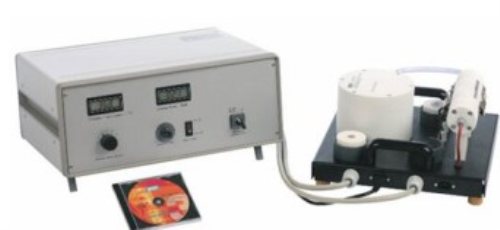

SR3025 Radial and Linear Heat Conduction Vocational Education Equipment For School Lab Heat Transfer Demo Equipment The unit shall perform the following experiments and investigations:
Learning Objectives / Experiments
linear heat conduction (plane wall)
determination of temperature profiles for different materials
determination of the temperature profile in case of a disturbance
determination of the thermal conductivity lambda
radial heat conduction
determination of the temperature profile
determination of the thermal conductivity lambda
Specification
[1]investigation of heat conduction in solid bodies
[2]experimental setup consisting of experimental unit and display and control unit
[3]linear heat conduction: 3 measuring objects, heating and cooling element, 9 temperature measuring points [4]radial heat conduction: brass disc with heating and cooling element, 6 temperature measuring points
[5]cooling by means of tap water
[6]electrical heating element
21" TFT-Monitor Win 10 engl.
Technical Data
Linear heat conduction
3 measuring objects, insulated
1x DxL: 25x30mm, steel
1x DxL: 15x30mm, brass
1x DxL: 25x30mm, brass
heater: 140W
Radial heat conduction
disc DxL: 110x4mm
heater in the centre of the disc: 125W
cooling coil on the outer edge of the disc Measuring ranges
temperature: 0...100°C
power: 0...200W
Dimensions and Weight
LxWxH: 400x360x210mm (experimental unit) LxWxH: 470x380x210mm (display and control unit) Total weight: approx. 22kg
Material of construction: stainless steel
