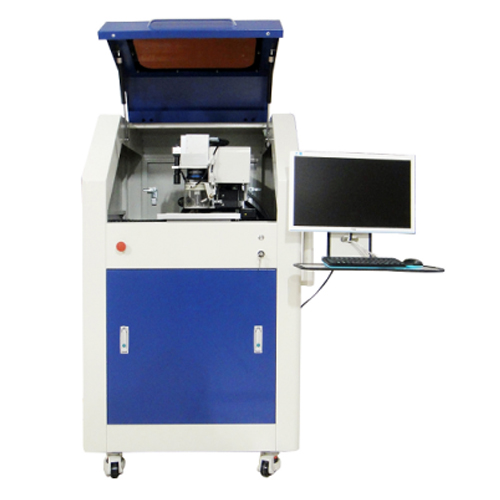

Printed Circuit Laser Forming Machine School Training Bench Vocational Education Equipment PCB Production Line Equipment

line spacing: 25μm (related to the material being processed)
line width: 20μm (related to the material being processed)
Average laser output power: 20W
Repeat positioning accuracy: ≤±2μm
System positioning accuracy: ≤±5μm
processing speed: 16cm²/min (related to the material being processed)
processing area: 350mm×300mm
Use air-cooled fiber laser
Laser wavelength: 1070nm

Working frequency: 20-200kHz
Laser preheating time: 10s
X, Y axis high-precision linear motor drive
Use digital scanning galvanometer
Use telecentric lens
Motion platform resolution: 0.5µm
Galvanometer resolution: 2µm
Use granite machine table
Equipped with vertical machine cover
Equipped with lens protection wind curtain
Equipped with industrial dust collection system
Equipped with high-resolution camera and diffuse reflection light source
With camera target positioning function
Equipped with industrial control computer and display
Equipped with vacuum adsorption platform
Power supply: 220VAC/50Hz
Host power: 2.2kW
Auxiliary equipment power: 1.5kW
