ZM8127 Losses in Pipe Systems Fittings Didactic Equipment Vocational Education Training Equipment Fluid Mechanics Lab Equipment "Specification

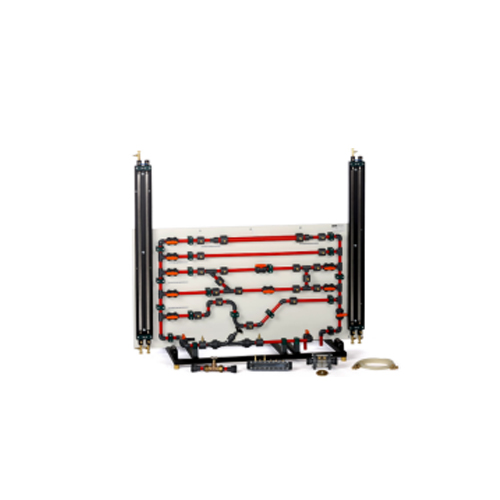

Panel for the demonstration and visualization of friction loss
• Investigation of the friction loss in pipe constrictions, elbows, bends, fittings
• 13-tube manometer
• Circulating pump, 3 stages, max. 60W
• 13-tube manometer 1600mmWC
• Flow rate measuring range: 0...1000ltr/h
• Supply tank: approx. 5ltr
• Circulating pump:
• Max. flow rate: 60ltr/min,
• Max. head 4m
" Pipe diameter: 19.48mm
Differential pressure gauge: 0 to 1.4bar
Enlargement diameter: 26.2mm
Contraction diameter: 19.48mm
Fittings:
– 45° mitre
– 90°elbow
– short bend
– large bend
– enlargement
– contraction Manometer range: 0 to 440mm
Number of manometer tubes: 12
Flow rate measuring range: 0...1000ltr/h
EXPERIMENTAL CAPABILITIES
¨ measuring the losses in the devices related to flow rate and calculating loss coefficients related to velocity head
¨ comparing the pressure drop across each device
Brand: Shouldshine
Model:ZM8127
