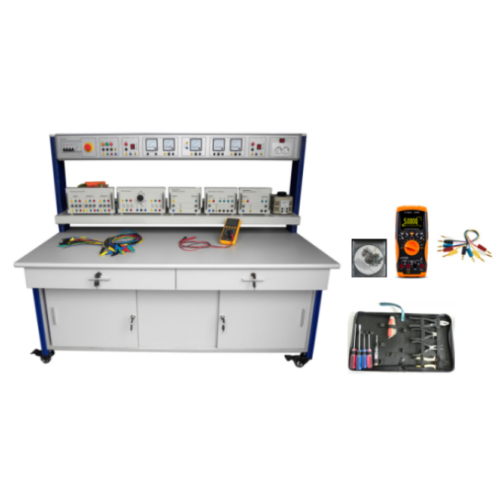

System Features:
- Modularized design providing the most flexible requirement of the system.
- Each Module panel height compatible with DIN A4 standard
- Using 4 mm safety sockets and plugs to patch experiment circuit
- Each DC/AC power supply equipped with overload protection.
- Rotary machine and brake are equipped with over-heating protection.
- Adopting digitized and microprocessor-based measuring instrument to provide high-accuracy measurement.
- Use magnetic power brake unit and brake controller to emulate as the mechanical load of the motor.
- Brake with constant speed/constant torque function, easy to operate.
- Offering 5 control modes to test motor, such as manual mode, closed-loop constant torque / speed mode, etc
- Drawn motor speed, torque, power, brake control voltage, and current in full window
- 300W-grade designed equipment suitable for learning the theory and characteristics of electrical machines.
- Standalone machine design equipped with two shaft ends and aluminum alloy base for coupling to other machines.
- The component symbol, value, and functional diagram are clearly printed on each module panels.
- Machines are compatible with Power Electronics System.
Supplied Courseware and manual
2 original copy in English(colour) :
- Standard Operational / Programming manual
- Maintenance manual and part list
19.arge facilities and protected by a fuse. Master discharge switch shall be an incorporated feature.
