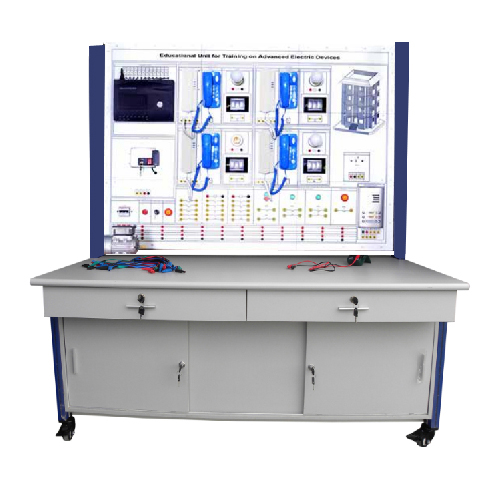

ZE5105 Educational Unit for Training on Advanced Electric Devices Teaching Equipment Electrical Installation Lab
The unit facilitates the following:
Training on Motor Control Circuits:
Delta Connection
Star Connection
Connections for Reverse Motion
Usage of Emergency Switches
Training on Intercom Circuits
Simulation for a domestic building of 4 floors and the training on connections of 4 intercom head sets for a number of 4 different apartments
Training on Central Installation Circuits
Simulation for a domestic building of 4 floors and the training on connections of 4 telephone sets for a number of 4 different apartments
Training on Lighting of Stairs Circuits
Simulation for a domestic building of 4 floors and the training on connections of 4 Stairs’ Lighting Lamps for a number of 4 different apartments
Training on Electric Door Lock Control Circuit
Training on how to connect the lock on sole basis
Training on how to connect the lock to the intercom
Electric Supply
Single Phase , 220 Volts, 50 Hz
Dimensions & Weight (approximate)
180 Cm x 80 Cm x 180 Cm
250 Kg
