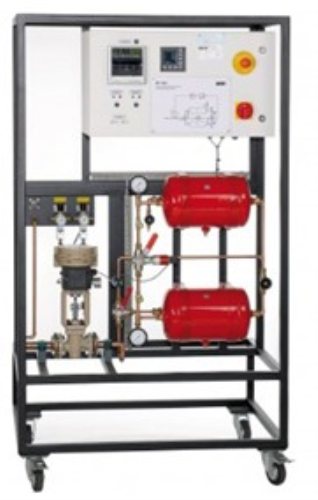

ZM9209 BENCH PRESSURE SENSORS REGULATED VERSION Vocational Education Equipment For School Lab Minimum required characteristics:
Objectives: Understanding of the different pressures measured
- Absolute pressure / Relative pressure / Differential pressure
. Study and comparison of different sensor technologies pressure
. Study of a pressure regulation loop
Main Features
Compressed air supply with regulator.
Air regulator with isolation valve.
Differential pressure transmitter with 4-20 mA feedback
on safety data sheets. Assembled with two valves
isolation valve and a balancing valve (manifold system).
Stainless steel compression enclosure.
Relative pressure 4-20 mA transmitter and valve isolation.
4-20 mA absolute pressure transmitter and valve isolation. Needle pressure gauge, isolation valve.
Reference absolute pressure 4-20 mA transmitter with isolation valve.
Vent valve. Solenoid valve proportional allowing pressure regulation on the escape Manual vacuum pump.
Configurable electronic indicator.
PID configurable electronic regulator.
Electrical box including:
• A padlockable disconnector for energizing the cabinet.
• An electronic indicator.
• A configurable PID electronic regulator.
• Signals available on ø4 safety sheets:
- 4-20 mA signals from pressure transmitters.
- Input of configurable indicators.
- Controller output and measurement signals
