1.1 Overview
This training device includes a variety of sensors, PLCs, inverters and other components. Through related experiments, you can study the principles of sensor and motor control and cultivate students' corresponding knowledge and skills. It is suitable for higher vocational, technical, secondary vocational schools, and technical schools Assessment of teaching and skills training in related majors.
1.2 Features
(1) The training device adopts an aluminum column frame structure, and the power supply is integrated and installed.
(2) The unit circuit hanging box is fully configured and can be used in combination to complete the training content of various courses.
(3) The relevant units can be flexibly added to or deleted from the experimental subjects to meet the needs of different users.
(4) The device has a good safety protection system.
3 Product composition
3.1 platform

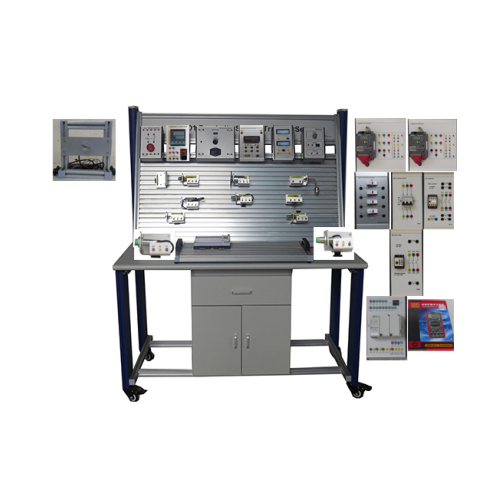

The training device adopts an aluminum column frame structure, which is safe and convenient to use and not easy to damage
3.2 Main supporting experimental hanging boxes and devices
(1) 1 power module hanging box
(2) 1 emergency button hanging box
(3) Circuit breaker module
(4) One fuse module
(5) 1 temperature regulator
(6) Inductive sensors
(7) Capacitive sensors
(8) One thermal relay module
(9) 1 contactor module
(10) One inverter module
(11) 1 soft start module
(12) 1 PLC module
(13) 1 multimeter
(14) One encoder
(15) 1 tachometer module
(16) 1 magnetic sensor
(17) 1 photoelectric sensor
(18) One ultrasonic sensor
(19) 1 PT100 temperature sensor
(20) 1 temperature display module
(21) 1 cylinder (with magnetic sensor)
(22) One voltmeter module
(23) 1 lamp, fan module
(24) 30 pieces of 4mm safety electrical connection cable
(25) Three-phase motor
2. Inverter application circuit training project:
Inverter parameter setting experiment
Frequency converter speed setting speed regulation experiment
Experiment of frequency converter analog control speed
Segmented speed control experiment of frequency converter
Communication control experiment of frequency converter
3. Soft starter control training project:
Soft starter parameter setting and adjustment experiment
Soft starter start control circuit test
Soft starter communication control experiment
4. PLC control training project:
PLC PLC control motor jog control circuit
PLC control motor self-locking control circuit experiment
PLC control motor delayed start control circuit experiment
PLC control inverter analog speed control speed experiment
PLC control inverter multi-speed control experiment
5. Sensor training project:
Inductive sensor training
Capacitive sensor training
Encoder training
Magnetic sensor training
Photoelectric sensor training
Ultrasonic sensor training
PT PT100 temperature sensor training
Cylinder (with magnetic sensor) training
